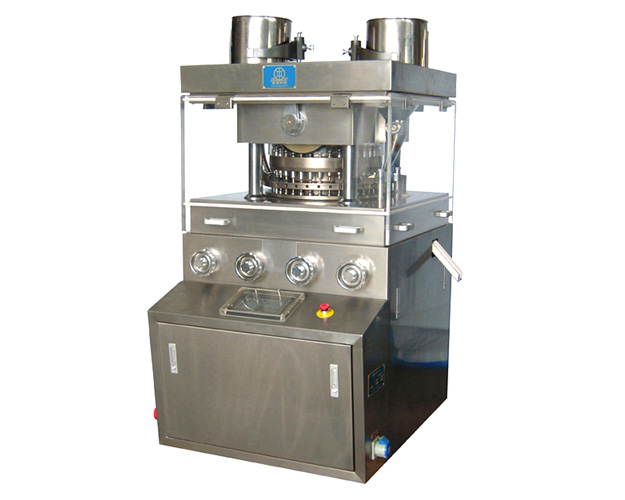

It's double-pressing type, outputting
tablets from both sides, nonstandard tooling, can compress granular raw material
into big round tablets and various shaped tablets.
Features:
-
It has double-pressing function (pre-pressing and
main-pressing), so the tablet quality can get improved.
-
Hand wheel with digital display is accurate and flexible and simplify
the tableting process.
-
Utilizing the variable frequency stepless speed control
device, it's easy to operate and safe and reliable.
-
Equipped with overload protection device, the machine can
shut down automatically when the overpressure happens.
-
The enclosing shield is fully enclosed of stainless steel;
the contacting material parts of the internal machine adopt stainless steel or
surface treatment.
-
All sides of pressing chamber have installed organic
transparent glass, which can be fully open, so it's prone to clean and maintain.
Additionally, it is equipped with secure light in the chamber press room.
-
The turret surface is specially treated and can prevent cross-contamination.
-
Double color tablet can be made according to the client's
requirement.
Upgrade Version
Adopt the PLC control and touch screen can indicate turret
rotation speed batch number, production time, impeller speed of forced feeding,
production name and can set system pressure, filling depth, pre pressure, main
pressure, and capacity.
It also can display instant pressure and set average pressure
and ejecting force of every punch. This machine has an emergency stop, overload
protection and can record and display overpressure fault content. Can read U
disk or print every ten minutes work time data.
Technical Parameter
|
Model
|
Unit
|
ZP31E
|
ZP29E
|
ZP29E
(IPT
TOOLING)
|
ZP31ES
|
|
Dies
|
sets
|
31
|
29
|
31
|
|
Max
pressure
|
kn
|
80
|
100
|
80
|
|
Max
pre pressure
|
kn
|
10
|
|
Max
diameter of tablet
|
mm
|
22(shaped
25)
|
25
|
22(shaped
25)
|
|
Max
filling depth
|
mm
|
15
|
19
|
First:7
Second:7
|
|
Max
thickness of tablet
|
mm
|
6
|
10
|
6
|
|
Turret
speed
|
r/min
|
10-24
|
|
Max
capacity
|
pc/h
|
89280
|
83520
|
44640
|
|
Diameter
of punch
|
mm
|
26
|
25.35
|
26
|
|
Length
of upper/lower punch
|
mm
|
115
|
133.35
|
115
|
|
external
diameter of die
|
mm
|
36
|
38.1
|
36
|
|
Height
of die
|
mm
|
22
|
23.812
|
22
|
|
Motor
|
kw
|
4
|
5.5
|
4
|
|
Overall
size
|
mm
|
1100*1150*1680
|
|
Net
weight
|
kg
|
1850
|
1950
|
1850
|
