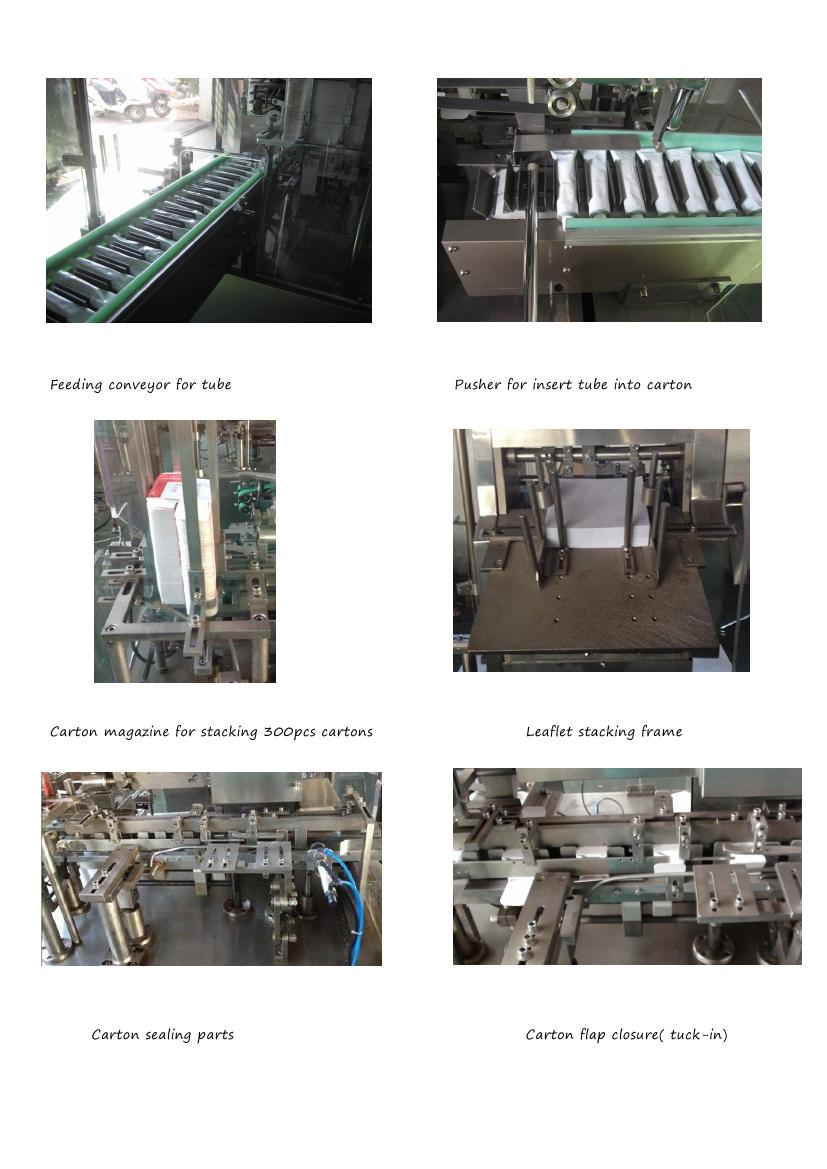

ZH-120G Automatic Cartoning Machine for Tube is high technology product incorporates of pneumatic-photo-electro-mechanic.It is suitable for inserting tube,ointment ,glass bottle,cosmetic and soft package(packed condoms) into carton in a range.The machine finishes running by a series of photo-electro controller to make the machine stability and guarantee the packing quality. It includes (1-4) folds leaflet automatic folding, canton suction and open,products and leaflet put into,printing batch number,sealing carton with tuck-in or hot melt glue device. The machine can be single used or linked with Filling Machine, Blister Packing Machine, Shrink Machine, Three -Dimensional Packaging Machine, etc to form a production chain.
Technical Parameter
Weight & Dimensions
|
Type
|
ZH-120G
|
|
Dimensions
|
2300mm*1140mm*1800mm (L*W*H)
|
|
Weight
|
1200 Kg
|
Output & Speed
|
Steady production speed
|
30-100 cartons/min
|
Unfold Leaflet (optional)
|
Grammage
|
Between 60-70g/m2
|
|
Size range
|
(80-250) *(90-170)mm (L*W)
|
|
Fold range
|
(1-4 )fold
|
|
Notice: The leaflet can be folded by the machine
|
Carton and bottle
|
Grammage
|
Between 250-350g/m2 (Base on carton size)
|
|
Carton Size mm
|
(65-155)mm*(35-85)mm*(15-50)mm
|
Utilities
|
Standard power supply
|
220V -50Hz
|
|
Power consumption
|
0.75Kw
|
|
Air consumption
|
120-160L/min
|
|
Compressed Air Pressure
|
0.6MPa
|
|
Noise
|
<70 dB
|
|
