ZGH-350 High speed Mixer
Application
1 ZGH type vertical high speed blender is for mixing powder with small moisture to design. It is a new type high-efficiency, regular and no dead angle machine.
2 The contact parts material is all stainless steel. The stirring shaft with sealing device avoids material swap and guarantee bearing and driving medium life.
Characteristic
ZGH high speed blender has these characteristics as follows:
1. Use install the bottom's vertical high speed paddle formative centrifugal force impact material, let it outside upward roll and inside downward sunk like volute, Let the material inside, outside, up and down mixing and compound full.
2. Use install the parietal's high speed crushed paddle to marsh roll material of outside, at the same time it has disturbed function, increase material relative motion, enhance mixing result.
3. Due to two paddle's combined action, it is compound full and uniform at short time. It is efficiency is higher and other mixers are difficult to compare.
4. There is no dead angle of mix bin. It is emptying quickly and cleaning easily.
5. All contact parts of this machine are all stainless steel. When mixing the raw material will not volatilize, go bad and run off. It is ensure craft matching demands.
6. The machine is suitable for different proportional dry or wet raw materials to mix. It is especially for chicken extract, medicine granule and drink powder to compound.
Technical Parameter
|
NO.
|
Model
|
Parameter
|
Remark
|
|
1
|
Total Volume
|
350L
|
|
|
2
|
Capacity
|
80-150kg/Batch
|
Decided by characteristic of material
|
|
3
|
Total Power
|
13.2Kw
|
agitator power:11Kw
crush power:2.2Kw
|
|
4
|
Weight
|
650kg
|
|
|
5
|
Overall Size
|
1500*1090*1200mm
|
|
JK23D Chicken Tube Tablet Press
Application
Chicken Tube Tablet Press is a special rotary tablet press, which is applicable to the chicken cube, bouillon cube, and flavor cube. Standard size is 10g type.
High Yield: can reach 690Kg/H(production will be subject to the actual)
Features
1. The appearance is fully enclosed structure, stainless steel shell, and the object interface are coated with anti-corrosion coating, make the machine more durable, comply with GMP standard.
2. safety and stability,frequency control, equipped with cleaner.
Technical Parameter
|
Model
|
JK23D
|
|
Stations
|
23
|
|
Max Pressure
|
100KN
|
|
Max Diameter of Tablet
|
40mm
|
|
Max Filling Depth
|
30mm
|
|
Max Thickness of Tablet
|
4-14mm
|
|
Max Capacity
|
10g 500kg/h、
|
|
Motor Power
|
5.5Kw/ 380v/ 50Hz
|

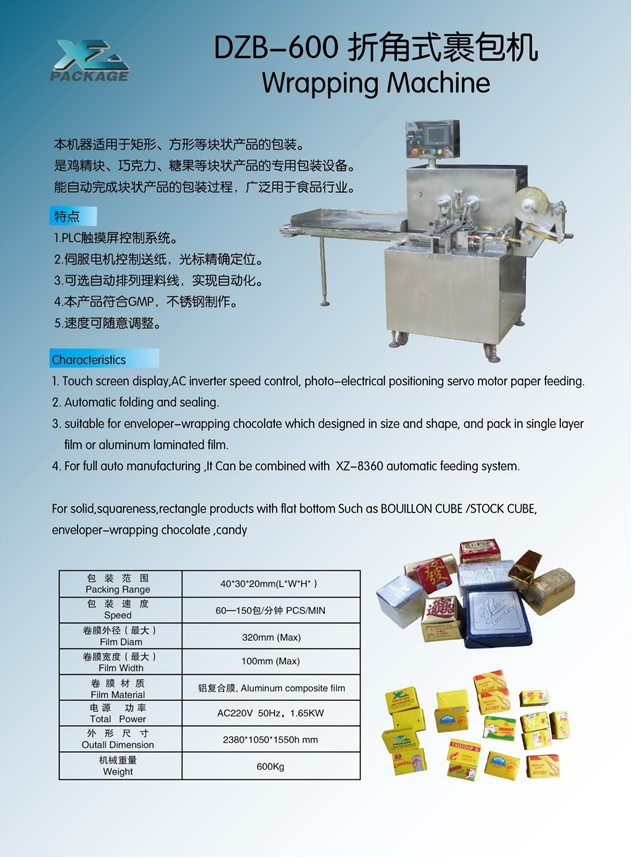

DZB600 Wrapping Machine

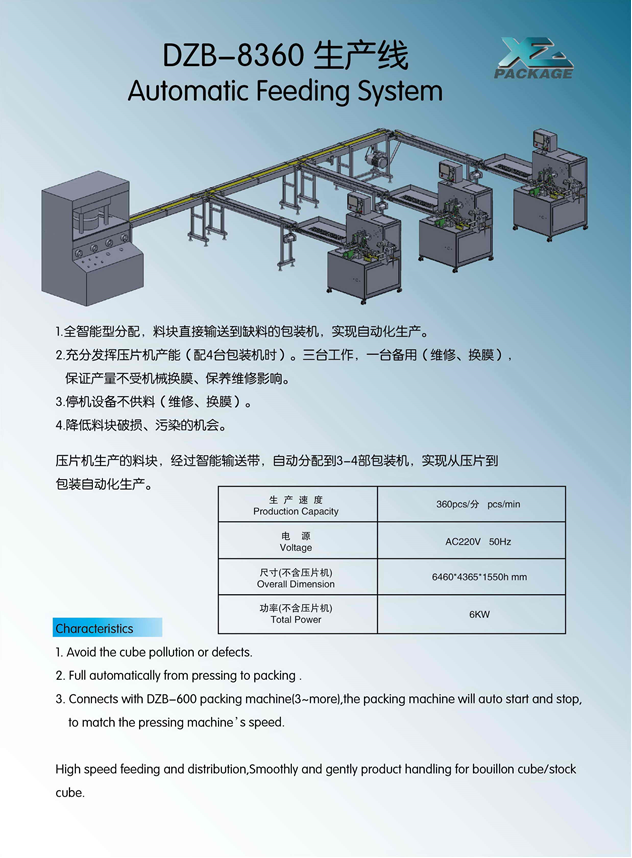

DZB-8360 Automatic Feeding System
